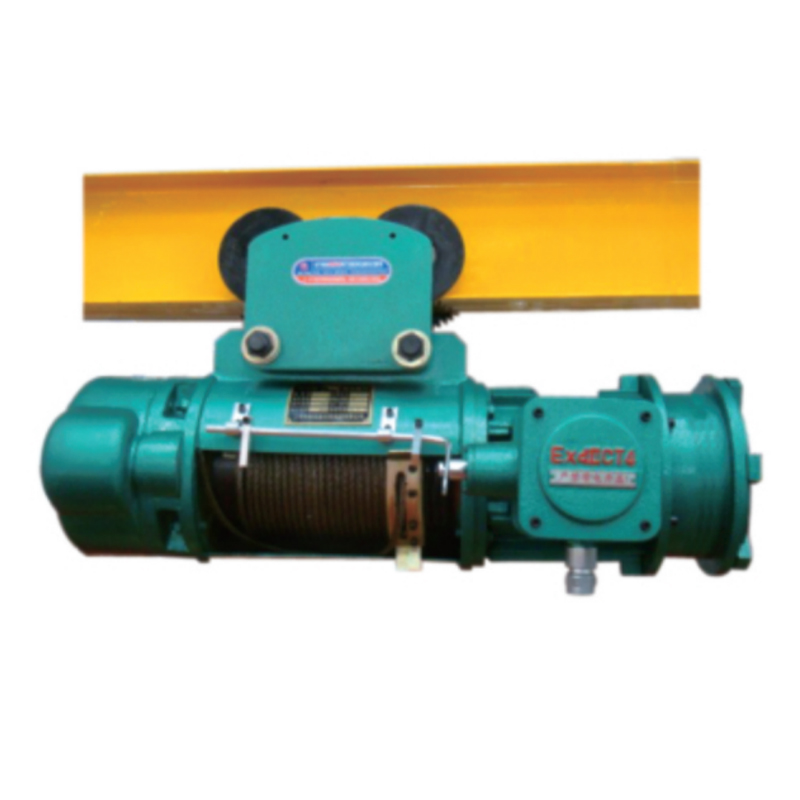

BCD Explosion-proof Electric Hoist

Tag:

Request a Quote

BCD explosion-proof electric hoist lifting speed is constant velocity, can satisfy the precision loading and unloading, sand and mould, machine maintenance and other fine job requirements. As the hoistgood feature of small volume, weight, simple operation, convenient use, etc, itis the industrial and mining enterprises, storage terminals and other places necessary lifting equipment.

	Type	CD1, MD1
Capacity (t)		0.25	0.5	1	2	3	5	10	16
Hoisting Height (m)		3 6 9	6 9 12	6 9 12 18 24 30	6 9 12 18 24 30	6 9 12 18 24 30	6 9 12 18 24 30	9 12 18 24 30	9 12 18 24 30
Hoisting Speed (m/min)		8 (0.8/8)	8 (0.8/8)	8 (0.8/8)	8 (0.8/8)	8 (0.8/8)	8 (0.8/8)	7 (0.7/7)	3.5 (0.35/3.5)
Travel Speed (m/min)		20	20/30	20/30	20/30	20/30	20/30	20/30	20
Steel Wire Rope Diameter (mm)		3.6	4.8	7.4	11	11	15	15	17.5
Specification		6×39	6×37	6×37+1	6×37+1	6×37+1	6×37+1	6×37+1	6×37+1
Track		10–20b	16–28b	16–28b	20a–32c	20a–32c	25a–63c	32b–63c	32b–63c
Minimum Curvature Radius (m)		0.8	1.5	1.5 2 2.3 4	2 2.5 3 4	2 2.5 3 4	2.5 3 4 5	3.5 4 6 7.5	3.5 4 6 8 11
	Type	ZD112-4	ZD121-4ZDS0.2/0.8	ZD122-4ZDS0.2/1.5	ZD131-4ZDS0.4/3.0	ZD132-4ZDS0.4/4.5	ZD41-4ZDS0.8/7.5	ZD51-4ZDS1.5/13	ZD12.2ZDS18.5
	Power (kW)	0.4	0.8(0.2/0.8)	1.5(0.2/1.5)	3.0(0.4/3.0)	4.5(0.4/4.5)	7.5(0.8/0.75)	13(1.5/13)	18.5(2.2/18.5)
	Rotation Speed (r/min)	1380	1380	1380	1380	1380	1400	1400	1400
	Current (A)	1.25	2.4(0.72/2.4)	4.3(0.72/4.3)	7.6(1.25/7.6)	11(2.4/11)	18(24/18)	30(5.2/30)	30(5.2/30)
	Type	ZDY110-4	ZDY111-4	ZDY111-4	ZDY112-4	ZDY112-4	ZDY121-4	ZDY121-4	ZDY121-4
	Power (kW)	0.06	0.2	0.2	0.4	0.4	0.8	0.8×2	0.8×2
	Rotation Speed (r/min)	1400	1380	1380	1380	1380	1380	1380	1380
	Current (A)	0.3	0.72	0.72	1.25	1.25	2.4	2.4	2.4
Number of Operations	Times	\multicolumn{8}{c}{120}
Working System		\multicolumn{8}{c}{Intermediate Duty, FC=25%}
Power Supply		\multicolumn{8}{c}{3-Phase AC 380V 50Hz}
Basic Dimensions (mm)	L	391	616 688 760 758	856 954 1150 1346 1542	820 920 1020 1220 1420 1630	932 1108 1138 1327 1533 1738	1047 1157 1257 1467 1677 1887	1602 1783 2145 2507 2869	1677 2352 2952 3387
	L1	78	274 346 405 345	441 737 933 1129	352 452 552 752 952 1152	380 483 586 792 998 1204	415 525 635 835 1025 1275	1056 1418 1780 2142	1045 1796 2261
	L2	216	125	158	\multicolumn{6}{c}{240}
	L3	318 390 462	401 499 597 793 989	418 518 618 818 1018 1218	418 618 818 1018 1218	485 695 905 1135 1329	1130 1492 1854 2216	1430 1870 2275
	L4		190	196	240	264	320	376	376
	B	279–315	884	884	930	930	1055	1055	1055
	H	423	650	667 767	840 950	954 1058	1120 1183	1350	2100
	d		16.5	19	\multicolumn{4}{c}{25}	31	37	41
	b	185	185	205 270 460 860	205 280 480 680	205 295 390 730	330 530 730 940	450 635 795 1098	1301 1411 1130
Crane Weight(Tolerance ±10%, kg)	CD1 Type	44 45 46	121 125 130 137	145 172 188 204 220	231 285 309 352 353	281 297 354 390 420	451 495 597 646 686	726 1048 1209 1301	1411 1130 1183 1286 1463 1563
	MD1 Type		138 142 147 164	174 199 215 231 247	256 267 320 344 361	368 311 327 384 420	508 532 654 703 743	1104 1154 1265 1366	1273 1553 1663
Base Weight(kg)	CD1 Base	30 31 32 89	94 99 105 112	120 135 159 165 166	176 186 209 229 242	236 256 280 312 340	377 407 456 493 529	795 841 943 1035	1127 890 1006 1183
	MD1 Base	106 111 116	132 140 147 162	177 192 201 211 221	244 264 284 252 266	280 314 342 370 430	457 472 513 549 586	851 897 1091	1183 997 1090 1273
